Overview

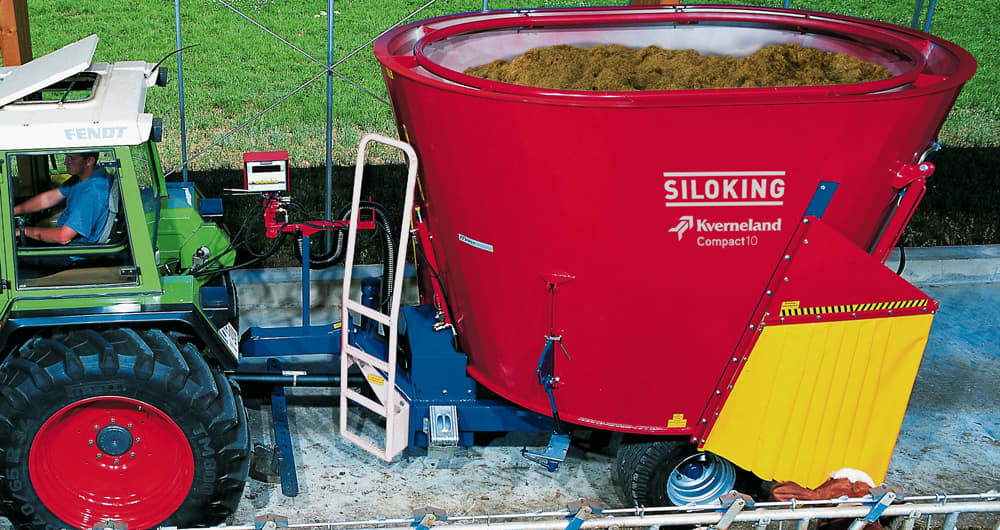

Flexible, compact and efficient – Compact models are medium sized machines with all the advantages of larger models. Compact models are particularly suited to buildings where space is restricted, due to their reduced dimensions. Easy handling, simple to use, low purchase and running costs yet efficient performance – an ideal solution. These machines feed 30 to 100 cows per hopper filling. The Compact range comes standard with a front right discharge door, but with an extensive list of discharge options the machine can be tailored to your needs. Also standard – ladder, weighing system, straw ring and hydraulic controls direct to tractor.
Key Features
7m³, 8m³, 9m³, 10m³, 12m³ and 14m³ versions
30 to 100 cows per hopper filling
Direct discharge from the door front right (standard)
Straw ring
Hydraulic controls
Simple ladder
Technical Specifications
| Capacity | Length | Width | Height | |
|---|---|---|---|---|
| Compact 7 | 7m³ | 4.30m | 2.06m | 2.52m |
| Compact 8 | 8m³ | 4.50m | 2.25m | 2.44m |
| Compact 9 | 9m³ | 4.55m | 2.25m | 2.64m |
| Compact 10 | 10m³ | 4.65m | 2.04m | 2.75m |
| Compact 10-T | 10m³ | 4.70m | 2.55m | 2.57m |
| Compact 12 | 12m³ | 4.75m | 2.55m | 2.77m |
| Compact 14 | 14m³ | 4.80m | 2.55m | 3.14m |
Specifications
Single Turbo Auger
- Turbo Auger is fitted with hard-edged scraping strips (St 70) and multiple adjustable hard-coated XS knives, ensuring ultimate durability of this component.
- The scraping strip of the auger has a flat design to reduce power requirement. The flat strip is able to lift concentrates from the bottom of the machine so it is possible to add concentrates from the beginning of the mixing process.
- The 20mm bottom plate (25mm on model Premium 16) from high quality (St 52) steel, together with the heavy-duty edged hopper ensure a perfect interaction between Turbo Auger and hopper.
- Equipped with an additional wing at 180° to the auger leading edge, the Turbo Auger ensure a rapid and thorough mixing action.
- For longer durability Siloking Kverneland has developed SILONOX lining as an option for the mixing augers and hopper walls, where most wearing occurs.
Gearbox and Driveline
- Standard with planetary gearbox with helical bevel gear drive, the heavy duty transmission is designed for efficiency and durability, even when operating at full load.
- The relationship between gearbox and auger is carefully balanced for the optimum mixing result – high mix quality in the shortest possible time.
- All elements of the transmission – auger connection, planetary gearbox, 2-speed gearbox & drive-line – match the requirements of excellent mix results with minimum down-time.
Weighing System
- Precise control of ration components is needed when preparing feed rations.
- Siloking Kverneland vertical mixers are fitted with a highly accurate weighing system as standard.
- This means that exact quantities of materials can be loaded – essential for the preparation of accurate feed rations.
- Featuring multiple weigh bars mounted between hopper and separate chassis, this quality system offers very accurate control of even small components during the loading of the machine.
- Clearly visible some distance from the machine, the simple scale is standard with a fully programmable system as an option.
Discharge Options
- The vertical mixer range can be adapted to suit a wide variety of barns or feed troughs.
- From feeding onto the floor or over high feed barriers, there is a discharge solution available.
- If needed a conveyor option can be fitted to transport material away from the door.
- Simple discharge doors – single or multiple per machine.
- Cross conveyor for discharge to either side of the machine – can be positioned at the front or rear of the machine.
- Hydraulically driven conveyors, fitted onto cross conveyor or direct onto discharge door, suitable for transporting material or into troughs.
- TwinLift conveyor – available for Compact 10-14 and Duo 14T-26. Can disharge in any position.
Straw Blower
- The straw blower option is available on models Compact 10-T–14m³, Duo 16-18m³, Duo Avant 14-20 and Duo New Generation.
- The straw blower option offers a precise discharge of the straw inside the animal buildings.
- The 1.55m diameter front mounted flywheel comes from the Kverneland 850 series Bale Choppers – known for its´ robust design and quality distribution of straw.
- This system is mechanically driven from the tractor and located direct on the front of the machine, without the need for feed drums or conveyors.
- Drive to the flywheel is independent of the drive to the augers, supporting each phase of the process – loading, cutting, mixing and discharge.
- Straw is distributed by the side chute, offering straw blow up to 20.
Siloking Kverneland Wireless
- All information available at a glance.
- Weighing system controlled from the tractor cabin.
- Wireless – no disturbance of hydraulic functions.
- All information is stored centrally in the machine box.
- Weight information is always available – even in the silo.
- Control your weighing system from the loading vehicle.
- Feeding Management Software gives you full control over loading precision and feed consumption.
- The SWT package includes adding weighing system.
- The SWE Package combines programmable weighing system with electro-hydraulic control.
