Overview
Duo models with 2 or 3 vertical augers – suitable for high payload and in various configurationsm they adapt perfectly to the farm´s demands.
With the 2 or 3 Turbo Augers, Duo models are high volume, high capacity machines suited to large herds, even when transporting material large distances. Models 12-28m3 feature 2 vertical augers and models 36-45m3 have 3 vertical augers. The heavy duty transmission is designed for long-life under heavy usage situations – twin or triple gearboxes with continuous drive reduce drive shaft problems and 2-speed gearbox as standard to match auger speed and cutting/mixing/discharge process. The unique box frame carries 6 load cells and a strong axle suspension. Tridem axles (standard on 40m³ and 45m³ models) with two steering units provide maximum payload and safe operation with low wear on tires and machine. Suited for herds of any size.
Key Features
12-28m³ versions with 2 augers and 36-45m³ versions with 3 augers
80 to 250 cows per hopper filling high capacity models
Turbo Auger ensures rapid and even mix of the feed ration
Highly accurate weighing system
Wide choice of discharge options
Optional with straw blower (Duo 16 and 18)
Heavy duty transmission with 2-speed gearbox
Choice of multiple discharge doors or cross-conveyor
Technical Specifications
Model | Capacity | Model | Capacity |
---|---|---|---|
Duo 12 | 12m³ | Duo 22 | 22m³ |
Duo 13 | 13m³ | Duo 24 | 24m³ |
Duo 14 | 14m³ | Duo 26 | 26m³ |
Duo 14-T | 14m³ | Duo 28 | 28m³ |
Duo 16 | 16m³ | Duo 36 | 36m³ |
Duo 18 | 18m³ | Duo 40 | 40m³ |
Duo 18-T | 18m³ | Duo 45 | 45m³ |
Duo 20 | 20m³ |
Specifications
Two Turbo Augers
- The Turbo Auger height is adjusted to the hopper height providing perfect auger-hopper ratio for accurate and quick mix.
- Turbo Auger with slow revolutions provide a gentle mix with very low power consumption.
- Adjustable Turbo Auger speed.
- The conical hopper shape optimizes feed flow back from top to hopper bottom, providing fast processing and reduced power consumption.
- Robust load cells ensure accurate weighing – only what is in the mixing hopper is weighed.
- Multiple adjustable hard-coated XS knives.
- For longer durability Siloking Kverneland has developed SILONOX lining as an option for the mixing augers and hopper walls, where most wearing occurs.
Gearbox and Driveline

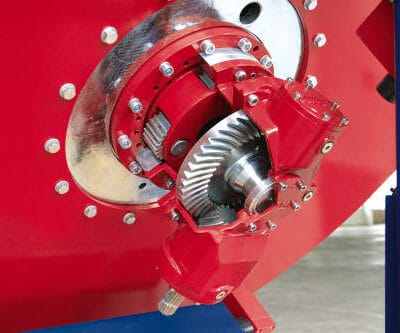

- Standard with planetary gearbox with helical bevel gear drive, the heavy duty transmission is designed for efficiency and durability, even when operating at full load.
- The relationship between gearbox and auger is carefully balanced for the optimum mixing result – high mix quality in the shortest possible time.
- All elements of the transmission – auger connection, planetary gearbox, 2-speed gearbox & drive-line – match the requirements of excellent mix results with minimum down-time.
Weighing System
- Precise control of ration components is needed when preparing feed rations.
- Siloking Kverneland vertical mixers are fitted with a highly accurate weighing system as standard.
- This means that exact quantities of materials can be loaded – essential for the preparation of accurate feed rations.
- Featuring multiple weigh bars mounted between hopper and separate chassis, this quality system offers very accurate control of even small components during the loading of the machine.
- Clearly visible some distance from the machine, the simple scale is standard with a fully programmable system as an option.
Discharge Options
- The vertical mixer range can be adapted to suit a wide variety of barns or feed troughs.
- From feeding onto the floor or over high feed barriers, there is a discharge solution available.
- If needed a conveyor option can be fitted to transport material away from the door.
- Simple discharge doors – single or multiple per machine.
- Cross conveyor for discharge to either side of the machine – can be positioned at the front or rear of the machine.
- Hydraulically driven conveyors, fitted onto cross conveyor or direct onto discharge door, suitable for transporting material or into troughs.
- TwinLift conveyor – available for Compact 10-14 and Duo 14T-26. Can disharge in any position.
Straw Blower
- The straw blower option is available on models Compact 10-T–14m³, Duo 16-18m³, Duo Avant 14-20 and Duo New Generation.
- The straw blower option offers a precise discharge of the straw inside the animal buildings.
- The 1.55m diameter front mounted flywheel comes from the Kverneland 850 series Bale Choppers – known for its´ robust design and quality distribution of straw.
- This system is mechanically driven from the tractor and located direct on the front of the machine, without the need for feed drums or conveyors.
- Drive to the flywheel is independent of the drive to the augers, supporting each phase of the process – loading, cutting, mixing and discharge.
- Straw is distributed by the side chute, offering straw blow up to 20m
Two Speed Gearbox
- Standard with heavy-duty planetary gear drive to auger and 2-speed gearbox, allowing accurate control of auger speed during cutting, mixing and feed-out.
- 2-speed gearbox can be changed manually or via hydraulic control (option).
Siloking Kverneland Wireless
- All information available at a glance.
- Weighing system controlled from the tractor cabin.
- Wireless – no disturbance of hydraulic functions.
- All information is stored centrally in the machine box.
- Weight information is always available – even in the silo.
- Control your weighing system from the loading vehicle.
- Feeding Management Software gives you full control over loading precision and feed consumption.
- The SWT package includes adding weighing system.
- The SWE Package combines programmable weighing system with electro-hydraulic control.
