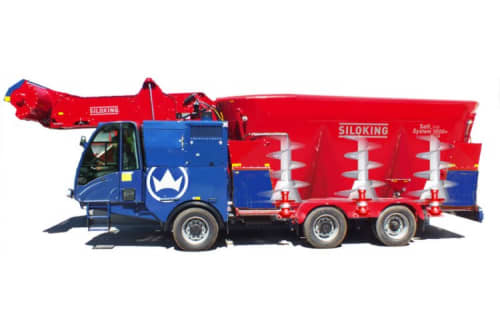

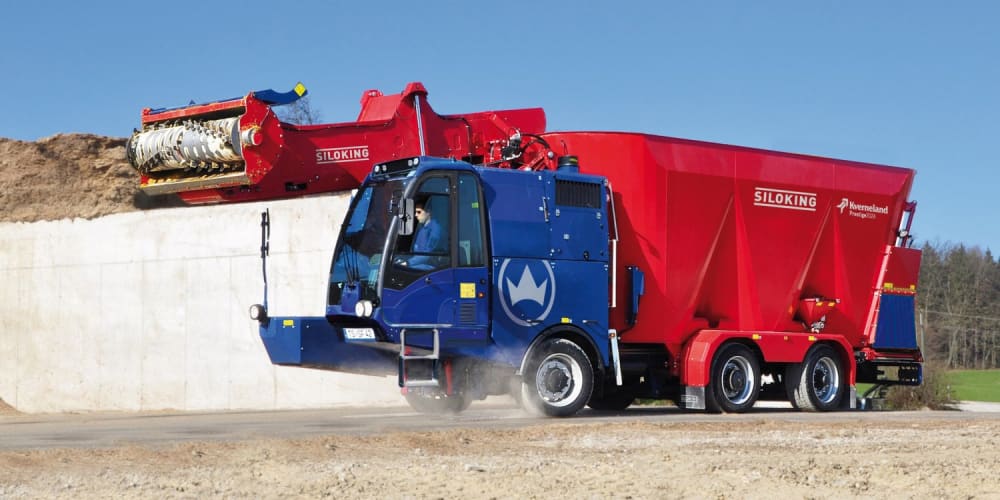

The Prestige 3024 range will take you into the XXL class of mixing capacity. Powerful driveline, 2 steered axles for high maneuverability and 2 or 3 augers raise the bar on capacity and performance. The impressive 210kW (286hp) Turbo diesel engine provides sufficient power. 24m³ and 30m³ versions are available.
Carefully formulated feed rations with a perfect homogenous mix plus an ideal feed structure ensure you get the best yield from your animals. In addition you offer your animals the best possible welfare. One machine and one operator. Consider the traditional feed mixer set-up: one tractor and trailed feed mixer, plus a second loading tractor. The machine investment alone is interesting – plus the reduced maintenance costs! With a wide choice of additional options you have the possibilities to tailor make the machine so it suits your needs.
24m³ versions with 2 augers
30m³ versions with 3 augers
New common rail SCR engine technology
Powerful driveline and engine of 210kW (286hp)
2 steered axles for good manoeuvrability and flexibility around the farm
Deluxe cabin for operator comfort
Two cameras for excellent overview
|Prestige 3024||Engine (kW/hp)||Length (m)||Width (m)||Height (m)|

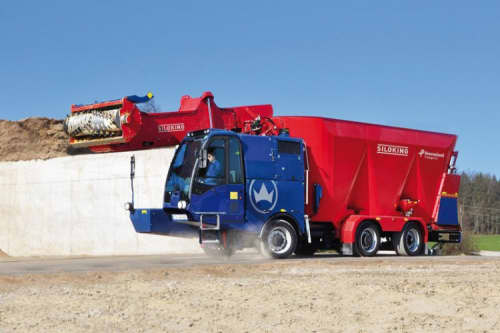

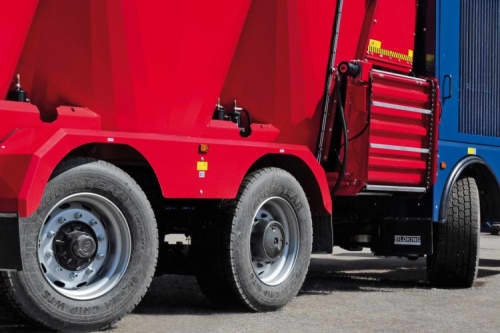

Prestige 3024 Manoeuvrability
- The highly versatile steering system of the Dyna-power chassis makes the machine very manoevrability and flexible in spite of its’ size.
- Steered axles provide the Prestige 3024 with a turning radius of only 5.75m or 8.10m.
- The 3 axles are designed for unrivalled loading capacity and driving stability.
- The standard air suspension is designed for excellent road contact and unique driving comfort of up to 40km/h.

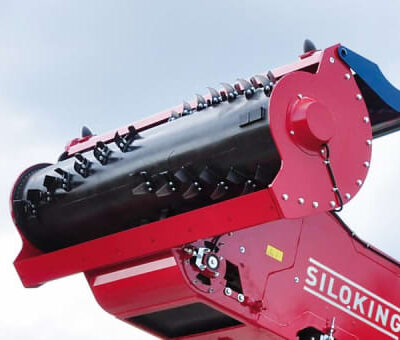

The Milling Head
- The 2m wide milling head is designed to manage the flow of feed material as fast and as gently as possible.
- The tungsten carbid knives are specially shaped to collect feed as efficiently as possible.
- Each knife has a proven long life– but is also reversible to extend the life even further.
- Immediately behind the knives are specially designed shovels, which gently move the feed to the centre of the milling head and onto the loading conveyer, transporting the feed into the mixing chamber

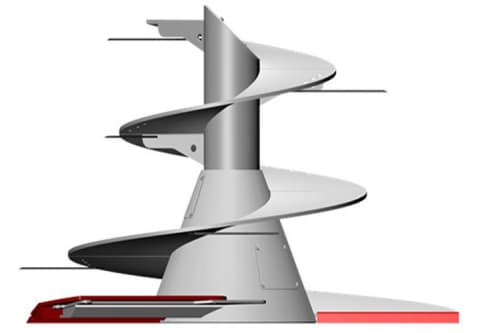

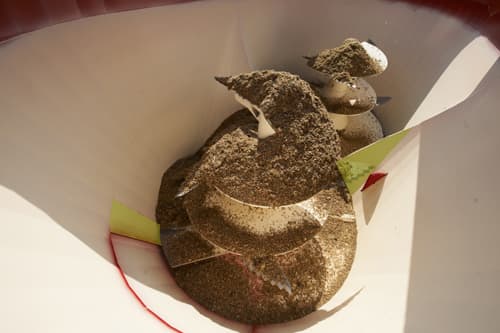

Prestige 3023 Turbo Auger
- Auger height is adjusted to hopper height for the perfect auger-hopper ratio.
- Generously dimensioned Turbo auger with slow revolution for gentle mix at low power requirements.

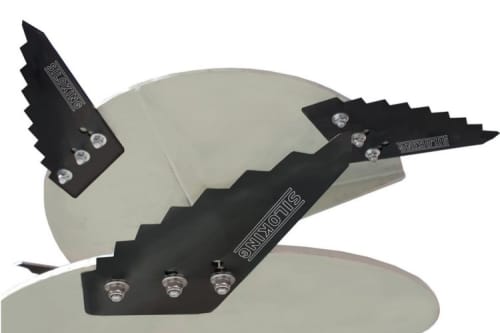

- Additional wings on the auger add to a rapid and thorough mixing action.
- Optional magnet available for removing foreign iron particles from the feed
- For longer durability Siloking Kverneland has developed SILONOX lining as an option for the mixing augers and hopper walls, where most wearing occurs
- The unique three-point chassis design avoids running over the feed.
- various discharge options:
- Simultaneous discharge at either side
- Foldable discharge conveyor for direct feeding into high throughs
- Optional discharge door at front.
- Easily operated from the cab.
- The new common rail SCR engine technology ensures that the Prestige mixers match the latest standards.
- Performance of the driveline is matched exactly to the capacity of milling head and mixing unit.
- The engine is positioned strategically at the centre of the mixer, close to both milling head and mixing unit, to ensure the most efficient power distribution.
- Simple maintenance with easy access to the engine compartment.
- Professional air filter system.
- The carefully designed controls are all within easy reach of the comfortable suspended seat.
- The multifunction joystick provides most of the controls for loading and discharge.

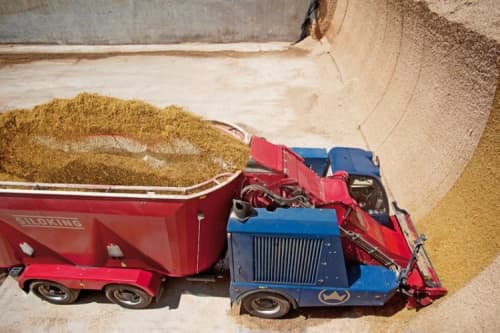

- The cabin position and the extended windscreen ensure a clear view of the loading process – the milling head is clearly visible from the highest to the lowest position.
- Heated mirrors, good air circulation inside the cabin and large wipers help to maintain maximum visibility from the cabin – even when the difference in temperature inside and out is significant.
- Cabin heater re-circulates the air from the bottom – ensures clear windscreen (and warm feet!)
- The suspended seat also makes even the longer daily tasks pleasant and comfortable.
