Overview
Verti-Mix 400 / 500 – The Starter Model
Key Features
Usable mixing capacity of 4,0 or 5,0 m³
Low-wear design
Gentle fodder Treatment
10-35 cows per container filling
Power required from 24 HP (18 kW)
Technical Specifications
| Type | Verti-Mix 400 | Verti-Mix 500 |
|---|---|---|
| Dimensions | ||
| Length (m) | 3,62 | 3,62 |
| Height (m) | 1,92 | 2,18 |
| Width with one-sided discharge (m) | 1,79 | 1,79 |
| Width with two-sided discharge (m) | 1,88 | 1,88 |
| Outside wheel width (m) | 1,62 | 1,62 |
| Discharge height (m) | 0,58 | 0,58 |
| Distance Centre of drawbar lug - Centre of axle (m) | 3,25 | 3,25 |
| Tare weight | ||
| with two discharge doors from (kg) | 1.660 | 1.700 |
| Gross Vehicle weight rating | ||
| Gross Vehicle weight rating (kg) | 3.000 | 3.000 |
| Towbar load (kg) | 850 | 1.000 |
| Power requirement (HP) | 24 | 31 |
| Volume (m³) | 4 | 5 |
| Wheel track (mm) | 1.350 | 1.350 |
| Container | ||
| Thickness of container wall (mm) | 6 | 6 |
| Bottom plate (mm) | 12 | 12 |
| Length of container inside Dimension with attachment (m) | 2,36 | 2,52 |
| Length of container inside Dimension without attachment (m) | 2,50 | 2,66 |
Brochure
Find out more about this product by downloading our brochure
Specifications

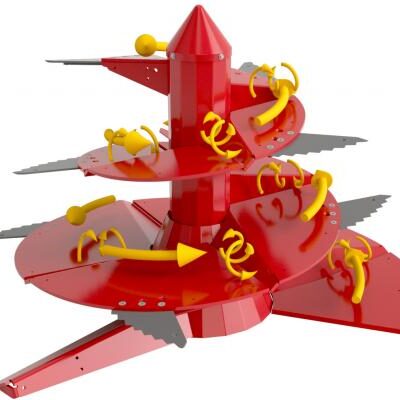

The Vario² mixing auger in stepped flight design – Variability and strength for any Purpose
Due to the patented knife adjustment system, the Vario² mixing auger in stepped flight design can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gear ensures a long service life even under challenging conditions.
- Low power requirement
- Optimum fodder structure
- Homogeneous mixing
- Energy-saving short mixing times
Magnetic system
- Highly effective magnetic separation of metallic foreign objects
- Optimum health protection for your high-yield cows
- Effectively because of direct and close contact with the mixed fodder
Different knife options for homogeneous mixtures and optimum fodder quantity
- individual adaptations to different natures of fodder components
- Problem free retrofittable
- Straw knife
- Bale knife: Ideal for cutting round bales
- Root crop knife: Additional crushing of beets or potatoes
You want your business to grow – Your Verti-Mix adapts to your growing needs
The additionial attatchement of 150 mm (option) enables you to adapt the capacity of the mixing container to your operational requirements.
• Mounted by the manufacturer or available as a retrofit kit
• Increases the mixing capacity
Fodder-protecting discharge via adjustable side chutes
At the side discharge devices, adjustable chutes support the fodder discharge. The side chute mechanically operated by the side gate
- Moves to rest position with the gate closed Fodder residues move onto the swathe and do not fall onto the drive path
- Ensures fodder discharge beyond the lane – The wheels do not roll over the discharged fodder
The side chutes can be equipped with an optional hydraulic actuating mechanism.
Operating and weighing – Take your choice
Strautmann responds to individual customer demands also with regard to the kind of operating device. The selection of the operating option depends on the user‘s requirements.
Direct tractor connection
One double-acting control device for each function. Reasonable if:
- The tractor is uncoupled only rarely
- The fodder mixing wagon is only equipped with a side discharge
Operation via bowden cable
One double-acting control device at the tractor or alternatively one single-acting control device with free return line. Reasonable if:
- Older tractors with only a few control devices are used
Electrical control set
One double-acting control device at the tractor or alternatively one single-acting control device with free return line. Reasonable if:
- awareness of comfort is existent and an increase in efficiency is requested
Weighing devices
PTM HL 50 – programmable weighing device without data Transfer
Sart model of the Strautmann weighing devices.
- 50 recipes
- From 30 ingredients
- Assessment
- Acoustic/Visual signal
