Overview
Simple Guidance and Area Measurement

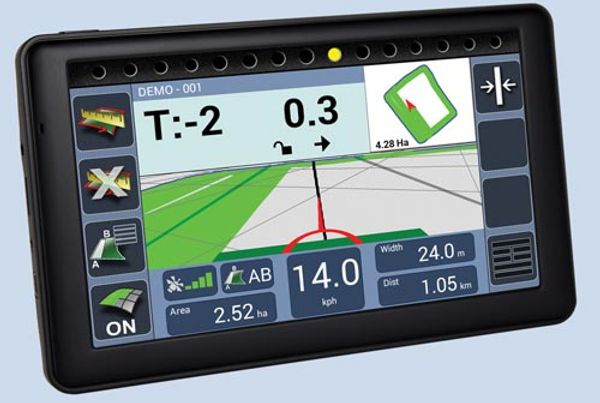

The newest addition to the award winning BlackBox guidance range is the BlackBox Air. An Android based solution for simple guidance, area measurement and field recognition with upgrade options for recording, synchronisation of data and vehicle tracking.
The BlackBox Air is supplied with a Bluetooth 10hz GPS receiver with WAAS, EGNOS and GLONASS as standard. With built in terrain compensation, the BlackBox Air provides an accurate location for all field operations.
The BlackBox Air is able to provide straight and curved guidance modes which is perfect for most guidance needs. The upgrade to the Air+ adds Headland Guidance and Headland Warning to the list of guidance options available.
Key Features
True Accuracy
Simple & Flexible
Proven Technology since 1998
Technical Specifications
Air Features | Air+ Features |
---|---|
Bright 7” LCD Display | Upgrade the Air to include |
10hz GPS receiver (WAAS, EGNOS and GLONASS) | Headland Warning |
Bluetooth connectivity | Headland Guidance |
Built in Terrain Compensation | Pause and Resuming of Jobs |
3D Guidance with Straight and Curved modes | Job Recording |
Field area measurement | Automatic Recording Option |
Field recognition | Synchronising of Data (3G or WIFI) |
Coverage area measurement | Tracking (3G or WIFI) |
Store Farm/Fields and Boundaries |
Brochure
Find out more about this product by downloading our brochure
Specifications
Android Tablet
-
Bright 7” LCD Display
-
High accuracy, durable touch screen
-
Micro SD storage card slot
-
Rechargeable battery (via USB)
-
WiFi (802.11 b/g/n) and Bluetooth connectivity
-
Optional 8″ Waterproof tablet upgrade
AIR GPS
-
10hz GPS receiver (WAAS, EGNOS and GLONASS)
-
Built-in Terrain Compensation
-
Bluetooth (2.0) connectivity
-
Plug and Play for Immediate Set-Up
-
Operates from 12v vehicle power supply
-
USB port for charging device
AIR App Software Features
-
Area Measurement
-
Field boundary measurement
-
Field recognition
-
Store Farm/Fields and Boundaries
-
Straight and Curved 3D Guidance modes
AIR+ Features*
-
Includes all the features of the AIR App
-
Automatic Recording Option
-
Headland Guidance
-
Job Recording
-
Pause / Resume job
-
Headland Warning
-
Data Sync and Tracking (3G or WiFi)
