Overview
Heavy Duty Centre Swath Rake
The Kverneland 95110 C is a twin rotor rake with 9.20-11.00m working width for the high performance segment, normally covered by more expensive four rotor rakes. 95110 C offers easy operation, excellent manoeuvrability and a heavy duty design. Despite the 11.00m working width, the rake is still very compact, something very convenient when working in smaller fields.
Key Features
ProLine oilbath gearbox.
TerraLink Quattro for perfect ground followings
Hydraulic adjustment of working width width between 9.20 and 11.00m.
Hydraulic height adjustment of the rotors.
Active wheel steering, allowing sharp turns on headlands and during transport.
Electronic control of main functions.
Technical Specifications
| Model | Working Width | Tine Arms | Weight |
|---|---|---|---|
| 95110 C | 9.20 - 11.00m | 2x15 | 2865kg |
Brochure
Find out more about this product by downloading our brochure
Specifications
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
- The handy control box, placed in the tractor cab, controls the main functions needed during work.
- Lift and height adjustment of rotors can be done individually.
- Adjustment of working width and swath width.
- Transport locking device.
- All functions can be pre-selected and then executed by operating the valve on the tractor.
- Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
- The ground contour following ability is important to avoid dirt in the swath – especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system – no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The Kverneland centre swath rakes offer hydraulic adjustable working width.
- This enables varying swath width, ensuring a perfect match to the pick-up width of loader wagons, balers and foragers.
| Working Width | Swath Width | |
| 9472 C | 6.20 – 7.20m | 1.20 – 2.20m |
| 9476 C | 7.00 – 7.80m | 1.20 – 2.20m |
| 9580 C | 7.00 – 8.00m | 1.20 – 2.20m |
| 9584 C | 7.60 – 8.40m | 1.30 – 2.10m |
| 9590 C Hydro | 8.00 – 9.00m | 1.20 – 2.20m |
| 95110 C | 9.30 – 11.00m | 1.40 – 3.10m |

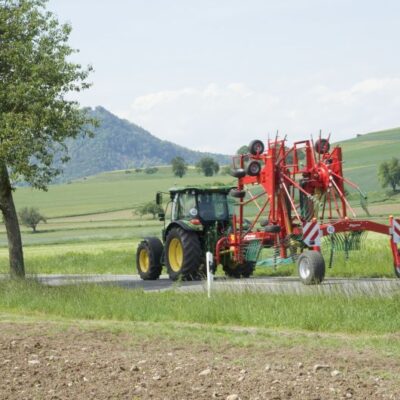

- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.

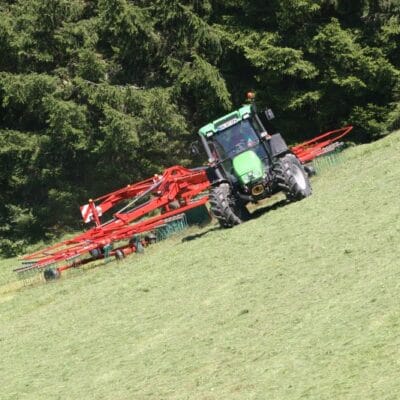

- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.
