Overview

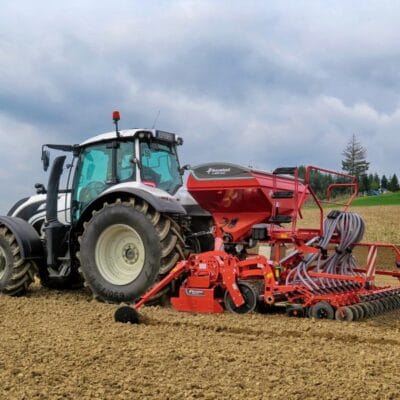

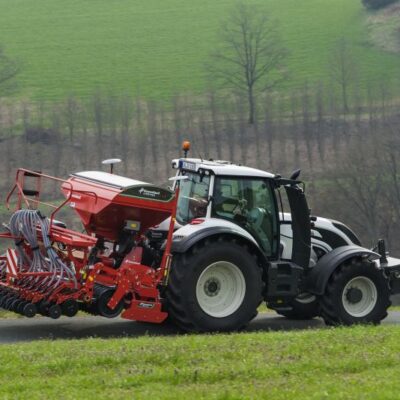

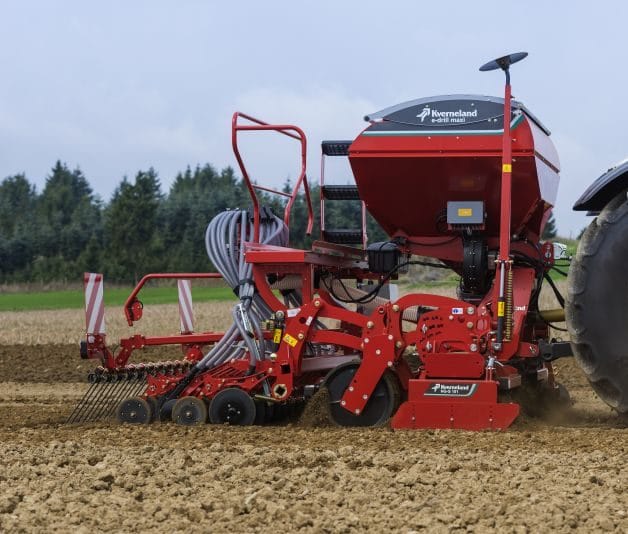

Kverneland e-drill compact and e-drill maxi. These two models allow seedbed preparation, re-compaction and sowing in one pass.
The e-drill compact is offered with a hopper capacity of up to 1400 litres, the e-drill maxi up to 2000 litres.
Operator-friendly – innovative and precise depth control
A parallelogram and a quadruple joint of the e-drill ensure the optimum adjustment of the power harrow and coulterbar for a precise seed application. Important: the adjustment of the power harrow has no impact on the coulterbar respectively the sowing depth.
Key Features
Close centre of gravity for reduced lifting power requirement
Easily accessible metering device ELDOS
Simple and independent depth adjustment of the power harrow and the coulterbar
Precise seed placement by CX-II coulters
Central depth and pressure adjustment of the following harrow
Technical Specifications
Model | e-drill compact | e-drill maxi |
---|---|---|
Working width (m) / transport width (m) | 3.0/ 3.5/ 4.0 | 3.0/ 3.5 / 4.0 |
Hopper capacity (l) | 1100 - 1400 | 1600 - 2000 |
No. of coulters (12.5cm distance - standard) | 24 / 28 / 32 | 24 / 28 / 32 |
No. of coulters (15.0cm distance - optional) | 20 / 24 / 26 | 20 / 24 / 26 |
Weight (kg) | 1180 / 1270 / 1350 | 1220 / 1300 / 1390 |
Brochure
Find out more about this product by downloading our brochure
Specifications
Pneumatic System – ELDOS
- The metering device ELDOS accurately measures the required volume of seed by the distinctive rotor and discharges it into the seed injector where is is mixed with the air stream and then conveyed through the diffusor tube and the seed delivery hoses to the coulters.
- The distribution head is mounted in a protected position inside the seed hopper.
ELDOS – the metering device
- ELDOS is electric driven by e-com and is fully ISOBUS compatible.
- GEOCONTROL by GPS signal is possible which avoids double seeding.
- Special sensors ensure functionality from the tractor cab.
- Five standard rotors are delivered: for fine and large seeds or fertiliser.
- The exchange of the rotors is quickly and easily done without any tools.
- Application rates from 1 to 400kg/ha are possible (depending on working speed and width).
- The metering device is always easily accessible.
Calibration
- Very simple calibration test due to the separate seed guidance.
- A remote control allows the driver to operate the calibration process at the metering device.
- No gear has to be adjusted. The driver simply enters the desired values into the terminal, presses one button to start at the metering device and that’s it.
- The calibration is done automatically.
- A calibration flap with an integrated gate prevents any seed from dropping into the hose.
CX-II coulter
- The CX-II disc coulter from Kverneland not only guarantees smoother running but also exact seed placement.
- The flatter cutting angle of only 5.4° of the steel disc requires less pulling power to reach a constant seeding depth of up to 6cm.
- Due to the combination of the steel disc with a diameter of 325 mm and the flexible plastic disc, there is no need for independent scrapers, saving the cost for expensive wearing parts. In addition the coulter is completely maintenance-free!
- Up to 35 kg coulter pressure can be achieved by a pre-loaded spring. Safe operation is ensured when working with high working speeds and high quantities of plant residues on the soil surface.
- An inter-row coulter spacing of 445 mm for maximum clearance and the following press wheel (standard equipment) ensure an optimum seed/soil contact in all conditions.
- The press wheels can be set in fixed or floating position in order to be able to adapt quickly to changing weather, soil or working conditions.
Euro-Connection
Flexibility is key!
The coulterbar can be easily coupled and uncoupled with a coupling hook similar to the front loader coupling. Track markers are attached to the power harrow. Therefore, the power harrow is ready for solo operation within short time. The coulterbar is attached with the Euro-Connection directly to the roller frame and can quickly and easily be hitched thanks to the readily accessible hydraulic and electronic interface.
The e-drill is exclusively designed to be combined with Kverneland power harrows.
Euro-Connection
Flexibility is key!
The coulterbar can be easily coupled and uncoupled with a coupling hook similar to the front loader coupling. Track markers are attached to the power harrow. Therefore, the power harrow is ready for solo operation within short time. The coulterbar is attached with the Euro-Connection directly to the roller frame and can quickly and easily be hitched thanks to the readily accessible hydraulic and electronic interface.
The e-drill is exclusively designed to be combined with Kverneland power harrows.
e-drill – Electronic Control
For the electronic control of the e-drill, a whole range of steering systems is available
Focus 3
Focus 3 is the new terminal steering the e-bas system which features hopper low level sensor, various tramline systems, information about ha, km/h monitoring of fan speed, pre-emergence marker, seed rate adjustments. Focus 3 is not ISOBUS compatible.
IsoMatch Tellus GO
The multifunctional one-screen terminal has been developed for fast and simple control of all ISOBUS implements, giving the farmer a ‘customer made’ experience as it suits all needs for plain and efficient handling of farming machinery and tasks. IsoMatch Tellus GO is the farmer’s first step into Precision Farming. With the easy to use application, IsoMatch GEOCONTROL, it is possible to boost efficiency and save time and costs. The application includes Manual Guidance, Section Control and Variable Rate.
IsoMatch Tellus PRO
IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything a farmer needs to get the maximum out of his machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.
With this new terminal you can work all the way as a PRO. The maximum working range for the task controller IsoMatch GEOCONTROL is increased from 2 km to maximum 10 km from the starting point. Thus even extremely big fields are handled in a full professional way. The new high brightness screen increases operator comfort. Visibility is increased during the day and dimmed to just a glowing display in dark conditions.
