Overview
Modelled on the design and construction of the Nugent Flatbed trailer, Nugent Beavertail trailers are designed for transporting vehicles. They maintain all the strength and durability of the Flatbed range. The Beavertail trailer comes fully galvanised as standard together with headboard in 14ft, 16ft and 18ft sizes. They are also designed and constructed to take all the optional extras.
Nugent’s patented Dual Drive™ suspension is standard across the range, enhancing the towing experience, bringing trailer suspension to new levels.
Key Features
LED Lights

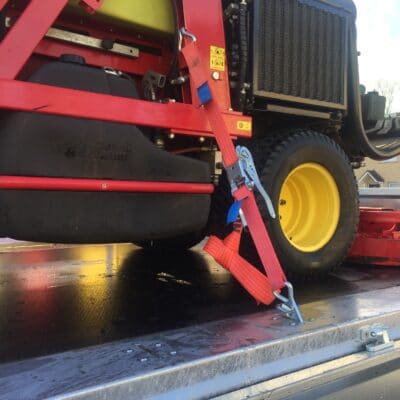

Lashing Points
Spare Wheel
18mm Birch plywood anti-slip floor
Models
| Model | Axles | Tyres | Gross Weight | Unladen Weight | Internal LxW (mm) | Internal LxW (feet) | Overall LxW (mm) | Overall LxW (feet) |
|---|---|---|---|---|---|---|---|---|
| B4320H | 2 | 185/70R13 | 3,500kg | 745kg | 4,300 x 2,000 | 14'1'' x 6'7'' | 5,530 x 2,000 | 18'1'' x 6'7'' |
| B4920H | 2 | 185/70R13 | 3,500kg | 795kg | 4,900 x 2,000 | 16'1'' x 6'7'' | 6,105 x 2,000 | 20'0'' x 6'7'' |
| B4923H | 2 | 185/70R13 | 3,500kg | 860kg | 4,900 x 2,256 | 16'1'' x 7'4'' | 6,105 x 2,256 | 20'0'' x 7'4'' |
| B5523T | 3 | 185/70R13 | 3,500kg | 1,040kg | 5,500 x 2,256 | 18'1'' x 7'4'' | 6,705 x 2256 | 22'0'' x 7'4'' |
Brochure
Find out more about this product by downloading our brochure
Optional Extras
Gallery
